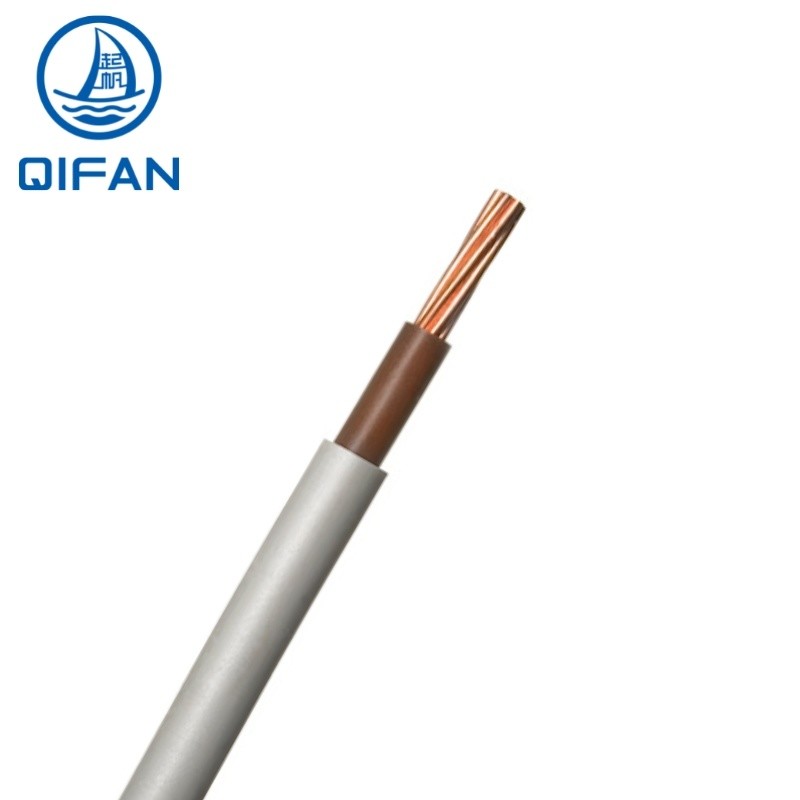

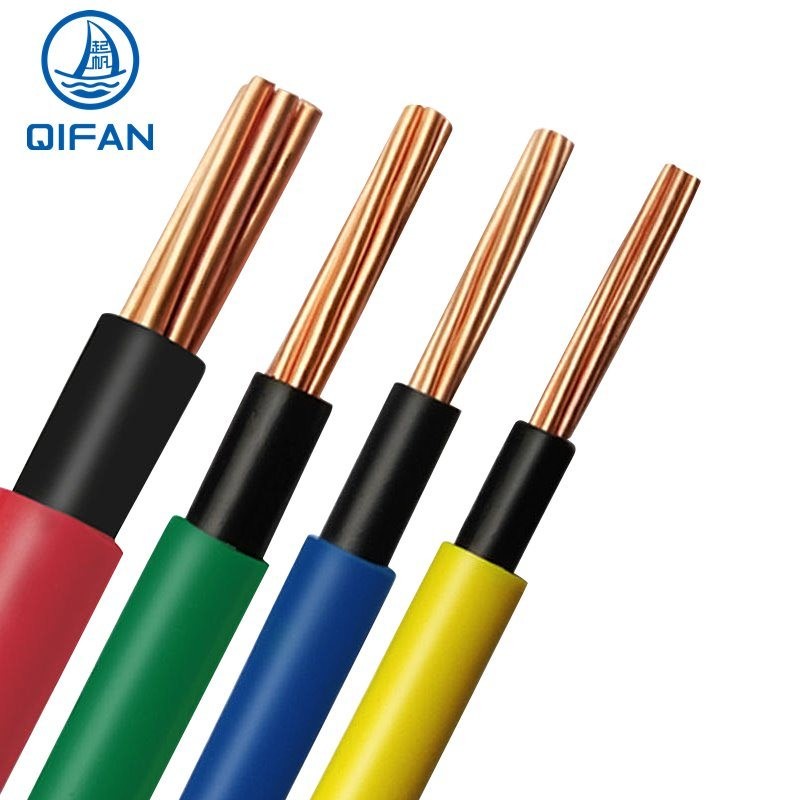

High Quality Copper Flat TPS PVC Insulated Coated Electric Twin and Earth Wire Application: The cable is used in fire extinguishing systems, sprinklers, control panels, and exit lights in high-rise buildings, hotels, hospitals, sub-ways, and public facilities Construction: 1. Conductor - Plain annealed class 2 stranded or class 5 flexible copper 2. Fire Resistant layer - Mica Tape 3. Insulation - Low smoke halogen-free (LSZH) Cross Section: Class 2 copper conductor: 2C1.0~2C2.5mm2 Class 5 copper conductor: 2C1.0~2C1.5mm2 Temperature characteristics: Conductor operating temperature: -15ºC~90ºC Min. temperatrue laying condition: 0ºC Electrical Characteristics: Rated voltage: 0.6/1 (1.2) kV High voltage test: 3.5kV / 5min Color: Red, black or according to customer requirements Standard: Cable design: IEC 60502-1 Conductor: IEC 60228 Fire resistant : BS6387 C Other sizes can also be produced as you required. | Size | Conductor Strands | Insulation Thickness |
| 2x1.5mm2 | 7/0.52mm | 0.6mm |
| 2x2.5mm2 | 7/0.68mm | 0.7mm |
| 2x1.5mm2+1.5mm2 | 7/0.52mm | 0.6mm |
| 2x2.5mm2+2.5mm2 | 7/0.68mm | 0.7mm |
| 2x4mm2+2.5mm2 | 7/0.85mm+7/0.68mm | 0.8mm |
| 2x6mm2+2.5mm2 | 7/1.04mm+7/0.68mm | 0.8m |
------Our Feature------
- Imported equipment with experienced technical team
The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany - Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate. - Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc. - Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
Fang Yu (Shanghai) Automation Technology Co., Ltd. These include over 30 series of products, such as plastic-insulated power cables for land and submarine applications ranging from 500kV down to 0.5kV, rubber-insulated wires and cables ranging from 35kV down to 1kV, overhead insulated cables, overhead wires, mine cables, fire-resistant cables, high-temperature cables, extremely cold-resistant cables, cables for offshore engineering equipment, control cables, computer cables, photovoltaic cables, new energy vehicle cables, building wires, and network wires. In total, there are nearly 4,000 types and over 50,000 specifications.
Fang Yu (Shanghai) Automation Technology Co., Ltd. Our products are widely used in water conservancy, electricity, home decoration, rail transit, construction engineering, aerospace, new energy, communication, intelligent equipment, offshore engineering, and mining and other fields.
