architecture usage cable flexible production description:
Copper conductor PVC insulated Electrical Wire belong to the series of laying electric wires, which is mainly suitable for laying at the fixed places. It is widely used as connectors of drive, lighting, electric equipments, instrument and telecommunication equipments with rated voltage 450/750V or below.
More electrical cable H05VV-F 0.75*3c can be produced as below per your request:
Style |
Conductor |
Insulation Thickness
(mm) |
Jacket Thickness
(mm) |
Overall Diameter
(mm) |
Voltage
(V) |
Sectional Area(mm2) |
No./mm |
H03VVH2-F |
0.5*2C |
16/0.2 |
0.5 |
0.6 |
3.4*5.5±0.15 |
300 |
0.75*2C |
24/0.2 |
3.5*5.7±0.15 |
H03VV-F |
0.5*2c |
16/0.2 |
0.5 |
0.6 |
5.3±0.15 |
300 |
0.75*2c |
24/0.2 |
5.5±0.15 |
0.5*3c |
16/0.2 |
5.6±0.15 |
0.75*3c |
24/0.2 |
6.0±0.15 |
H05VVH2-F |
0.75*2C |
24/0.2 |
0.6 |
0.8 |
4.0*6.4 |
500 |
H05VV-F |
0.75*2C |
24/0.2 |
0.6 |
0.8 |
6.5±0.15 |
500 |
0.75*3C |
6.8±0.15 |
1.0*2C |
32/0.2 |
6.7±0.15 |
1.0*3C |
7±0.15 |
1.5*2C |
48/0.2 |
0.7 |
0.9 |
8±0.15 |
1.5*3C |
8.5±0.15 |
2.5*2C |
80/0.2 |
0.8 |
1.1 |
9.6±0.2 |
2.5*3C |
10±0.2 |

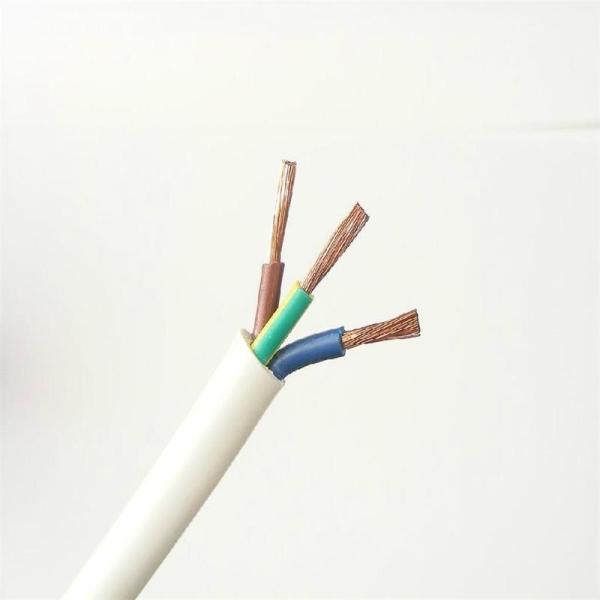

HO5VV-F electric flexible wire Description
construction:
Conductor: stranded bare copper
Insulation: color coded PVC
Jacket: color coded PVC
Rated temperature:70ºC
Rated voltage: 300V/500V
Refer to standard VDE 0281 HD21,IEC227
Applications
For use in tool and appliance applications. Rated for continuous use from -40°C up to 70°C.
Available Certifications
CE: 73/23/EEC, 93/68/EEC
IEC: 60227-5, 60332.1
VDE: 0281 Part-5
------Our Feature------
- Imported equipment with experienced technical team
The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany - Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate. - Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc. - Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
Fang Yu (Shanghai) products have passed China Compulsory Certification (CCC), coal mine product safety mark certification, China Classification Society certification, Telus certification, German TUV certification, European Union CE certification, and United States UL certification.
Fang Yu (Shanghai) Automation Technology Co., Ltd. Our products are widely used in water conservancy, electricity, home decoration, rail transit, construction engineering, aerospace, new energy, communication, intelligent equipment, offshore engineering, and mining and other fields.
